22mm Pin Piston Set By JE - 82.5mm Standard Bore - 9.6: 1 CR - Stock Stroke - 92.8mm - VW/Audi 2.0T TSI

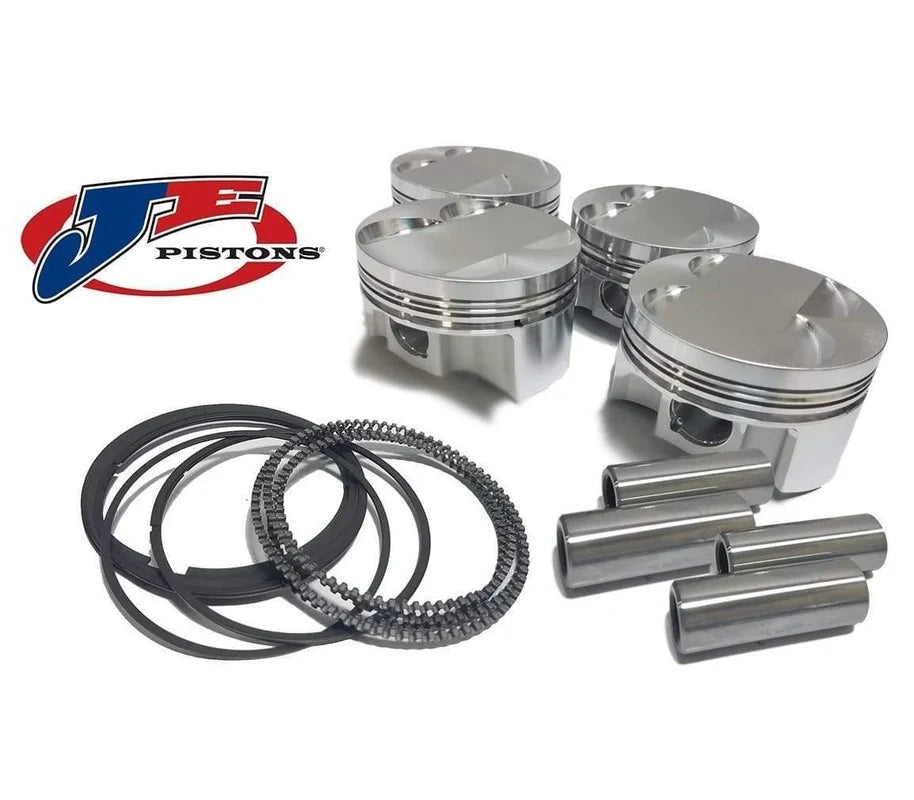

Description NOTE: Image shown not actual parts. For use with connecting rods that accept 22mm wrist pins. JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports. Bore (in) 3.248 Bore (mm) 82.5 Top Compression Ring Thickness 0.0400 Second Compression Ring Thickness 0.0480 Oil Ring Thickness 0.111 Forging Type Round Volume (cc) -7.10 Series JE Pistons Piston Head Type Inv Dome/Dish Pin Diameter (IN) 0.866 Compression Height 1.165 Make AUDI / VOLKSWAGEN.

Wrist Pin Style – floating or press fit Floating Wall Type CHAMFERED Wall Thickness (IN) 0.150 Ringset Part Number JG1001-3250 Ring Brand ProSeal Ringset Included Yes Retainer Thickness 0.063 Retainer Lock Style Wire Lock Retainer Lock Part Number 866-063-MW Retainer Diameter (IN) 0.866 Replacement Single Piston 345812S Piston Pin Inside Diameter 0.566 Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED Piston Material 2618 Piston Pin Length (IN) 2.250 Pin Offset Yes Pin Brand JE Pistons Pin Part Number 866-2250-15-51C Pin Included Yes Pin Diameter (mm) 22.00 Oil Rail Support Included No Deck Clearance 0.000 Brand JE Pistons OE Part #’s.

06H-107-065-DM / 06H107065 DM / 06H 107 065 DM / 06H107065DM 06H-107-065-CC / 06H107065 CC / 06H 107 065 CC / 06H107065CC 06H-107-065-CK / 06H107065 CK / 06H 107 065 CK / 06H107065CK 06H-107-065-CL / 06H107065 CL / 06H 107 065 CL / 06H107065CL 06H-107-065-CM / 06H107065 CM / 06H 107 065 CM / 06H107065CM 06H-107-065-DD / 06H107065 DD / 06H 107 065 DD / 06H107065DD 06H-107-065-DG / 06H107065 DG / 06H 107 065 DG / 06H107065DG 06H-107-065-DJ / 06H107065 DJ / 06H 107 065 DJ / 06H107065DJ 6H1-070-65D-M / 6H107065D M / 6H1 070 65D M / 6H107065DM.
